Microsoft Teams

This page describes the integration with Microsoft Teams that has been shown during the DOMINO 10 Launch event in October 2018.

The Implementation

The idea of the demo was that, once a new ToyMakers Quote was created, an event was generated for Microsoft Teams; the event was represented by an actionable event appearing in a Teams space which allowed the user to either Accept or Reject the Quote.

This integration is composed of two parts:

• the first part happens inside DOMINO and is implemented via an Agent developed in Lotusscript.
  It corresponds to the part of the processing which triggers the event for the target platform (in this case Microsft Teams) informing about the New Quote that has been created in DOMINO
• the second part happens outside DOMINO . It corresponds to the implementation of the action (the Approve or Reject action) from the target platform (Microsoft Teams).

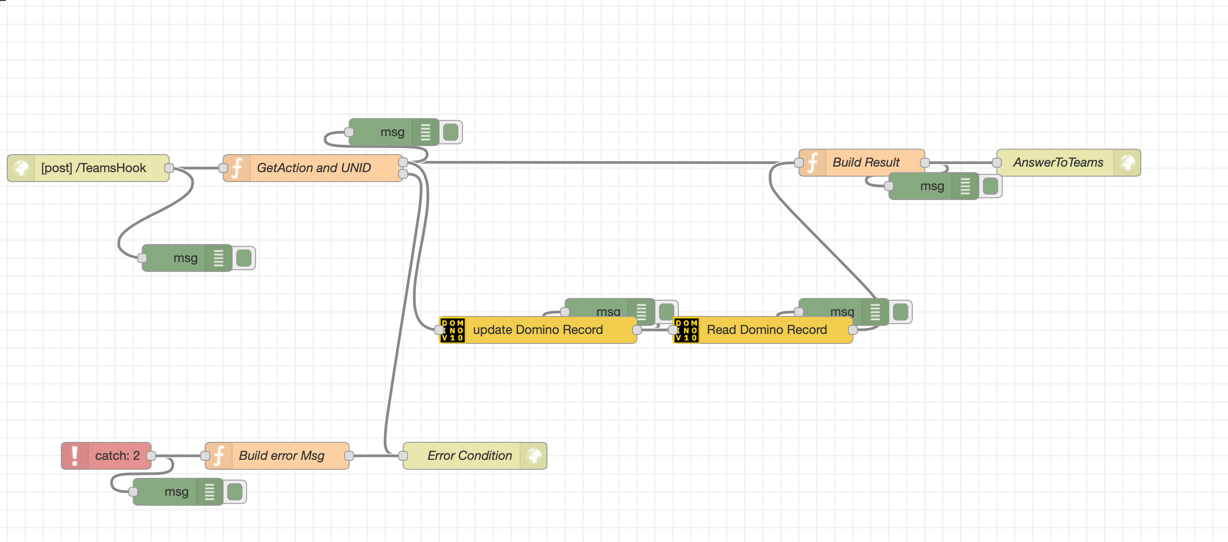

The NodeRED flow managing the second part of the integration is shown in the picture below.

Let’s analyze the details:

• At first, we created a listener hook in NodeRED via an HTTP in node.

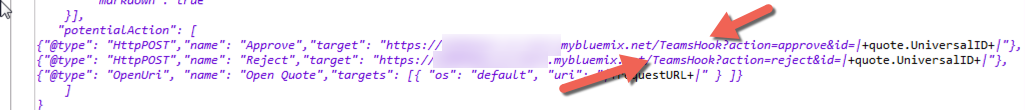

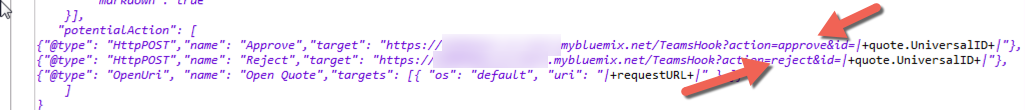

  This node listens for HTTP POST requests coming from Microsoft Teams when the user hits the Accept or Reject buttons. The endpoint TeamsHook has been defined by the LotusScript agent as shown here : Note that we also added a Debug Node which dumps the whole POST request coming from Teams

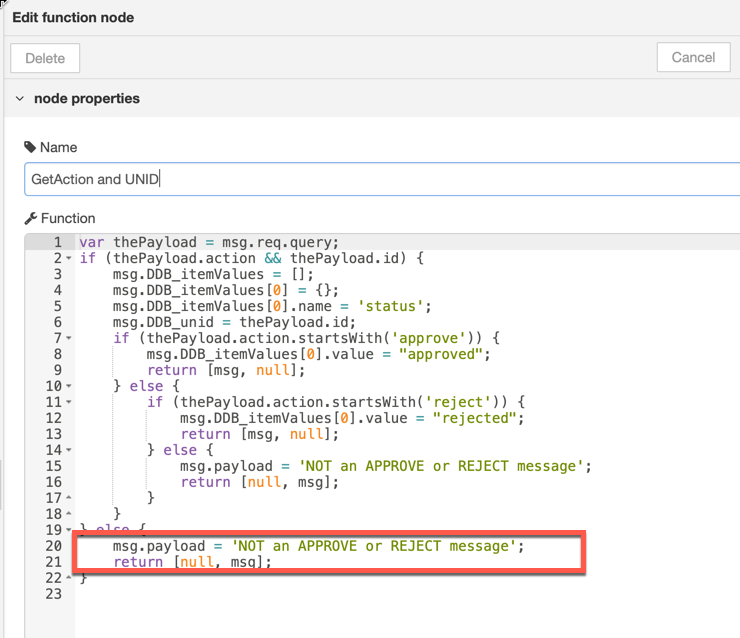

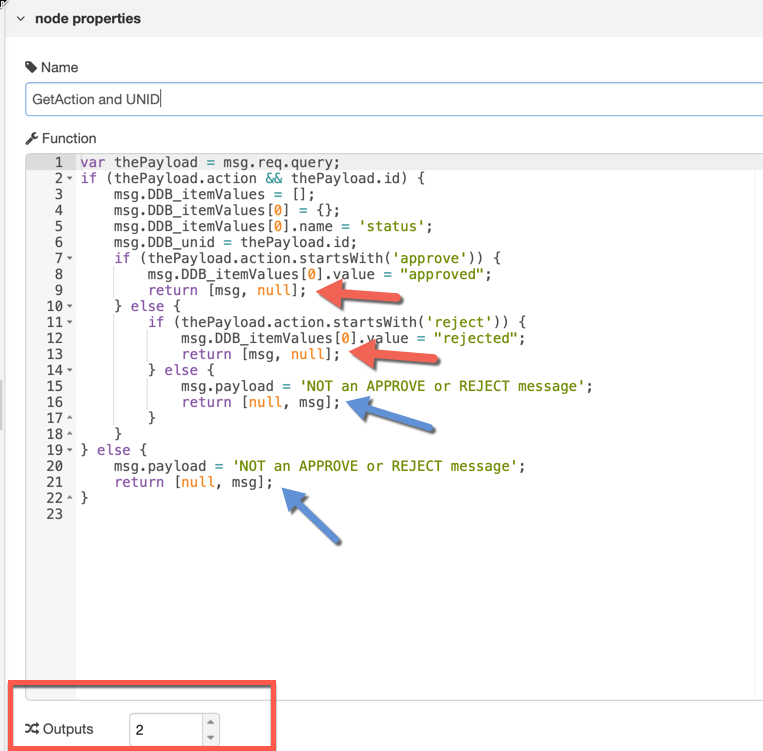

• Then we added a Function Node (GetAction and UNID) which is meant to validate that the POST Request is bringing the Accept or the Reject actions as defined by the LotusScript agent:
  The Body of the Function Node is very simple :
  • The node has two outputs (as shown by the red rectangle): the first to lead to the part of the flow dealing with Approving/Rejecting (the red arrows) and the second to deal with not valid input parameters (blue arrows).
    • The first output is going to *two different nodes, the **update Domino record and the Build Results nodes.
      The reason is that we need to preserve the incoming HTTP request context in order to properly respond to Teams using the HTPP Response node. Such context may be lost trhough the use of the uodate Domino record node (and the following ones).
      • Normally, the NodeRED dominodb nodes do not loose the context, but this trick ensures that, in case you may use other types of nodes, then you will not be lost
  • if the input is validated, it constructs the proper msg.DDB_itemValues attribute that will be passed to the following Update Domino Record node. In this way, the Update Domino Record knows how to modify the status field.
    It also sets the msg.DDB_unid attribute with the @unid value for the document to be modified.
    • Note that these information come from the incoming POST request via the action and the id query parameters.

• Before entering the behavior of the two NodeRED dominodb nodes, we need to undesratnd how those nodes will target the correct Domino database we are going to use,

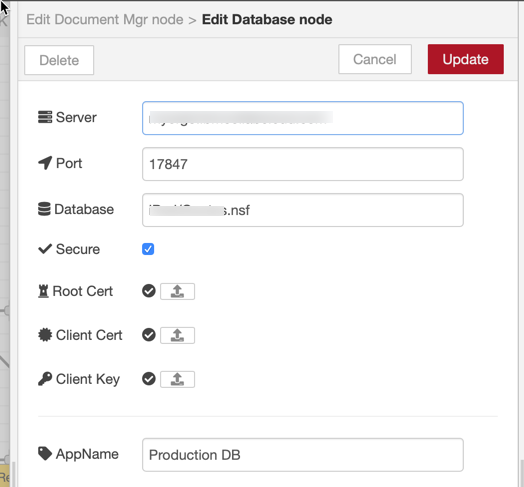

  The two nodes use the same NodeRED Credentials node whose name is Production DB and whose definition is shown here below:

  In addition to the name of the Domino server, the port on which the Proton component listens to the APIs and the name and location of the Domino database, we also defined the certificates that our Proton component uses.
  This is all done graphically from the Database NodeRED Credentials node which is included in the NodeRED dominodb package.

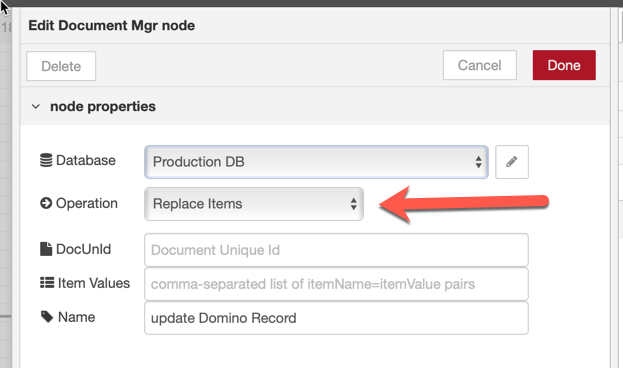

• Entering the update Domino record node.

  This is an instance of the DocumentMgr node which will execute the Replace Items API.
  The target document, not specified in the node Configuration Panel, comes from the msg.DDB_unid input parameter. Also, the new settings for the statusattribute come from the incoming msg.DDB_itemValues input parameter.

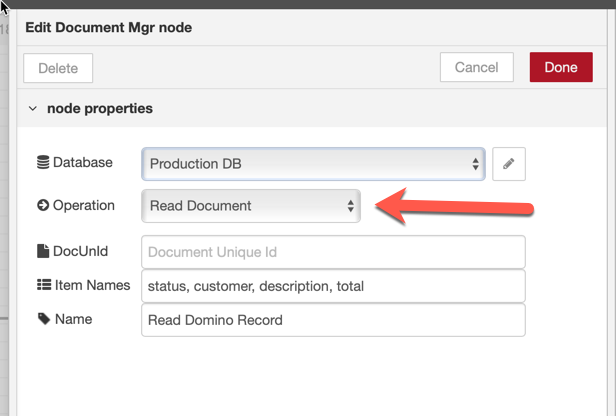

• The Read Domino Record node.
  This is an instance of the DocumentMgr node which will execute the Read Document API.
  The target document, not specified in the node Configuration Panel, comes from the msg.DDB_unid input parameter (which is passed untouched by the previous update Domino Record node).
  The node will provide, as output, the value for the status, customer, description, totalattributes as specified by the Configuration panel

• The Build Result node.
  This Function node is the destination of two inputs:
  • The first comes directly from the Get Action and Unid node.
  • The second from the Read Domino record node.

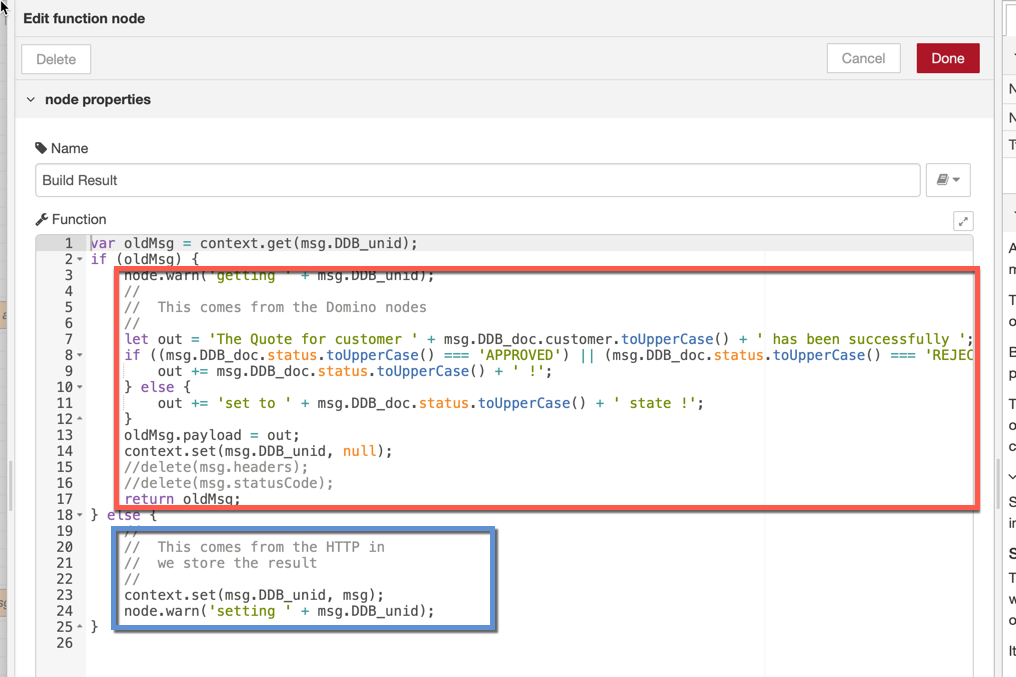

    We used the NodeRED context object to keep track of the two inputs (NOTE: This is far from a perfect implementation of the behavior. It is just a minimal implementation that worked for the demo. In a production context you certainly need to make the bahvior of the node more robust and resilient.)

  The input from the Get Action and Unid node is managed by the code in the blue rectangle. We save the whole incoming msg object in the context giving it an identifier which reflects the @unid value of the Domino record.
  The input from the Read Domino record is managed by the code in the red rectangle. It takes the msg object previously saved in the context, defines an output string for Microsoft Teams using the output values from the Read Domino record node (via the msg.DDB_doc output of that node) and returns that string as payload for the following node.

• The Answer to Teams node.
  This is an instance of a NodeRED HTTP Response node which returns a response to the initial HTTP-in node.
  This is the main reason we saved the original msgcoming from the initial HTTP-in node and we re-used it in the Build Result node (simply adding a new payload).

Error Handling

Since something wrong can always happen, the flow includes a branch to deal with error handling.
There are two types of errors that we decided to manage in the flow:

1. The first one is to protect our flow against an abuse.
   If the incoming message from Microsoft Teams is not the Accept or Reject, then this is a situation our flow cannot deal with.
   But, the flow needs to honor the reception of the incoming message and inform Teams. This is why we provided a second output to the Get Action and Unnid Function node with a simple output payload informing Microsoft Teams that it was not able to manage the request.
   The output payload is directly sent to the Error Condition HTTP Response node.

2. The second one is to graciously deal with errors coming from the NodeRED dominodb nodes.

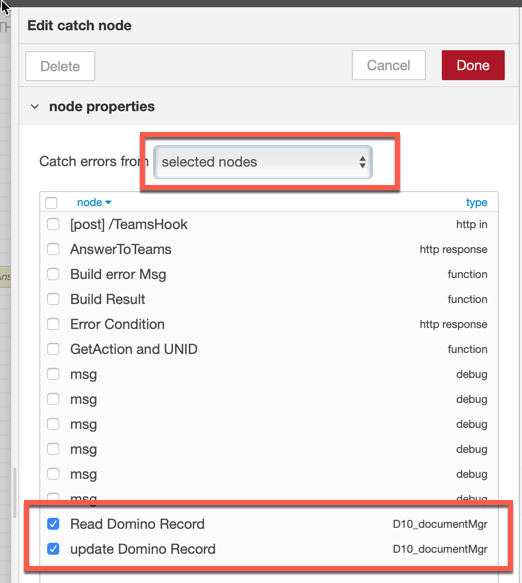

   As described in the official documentation, all the NodeRED dominodb nodes trigger an error when they cannot manage the task for which they have been created. This error can be catched using the standard NodeRED Catch node.

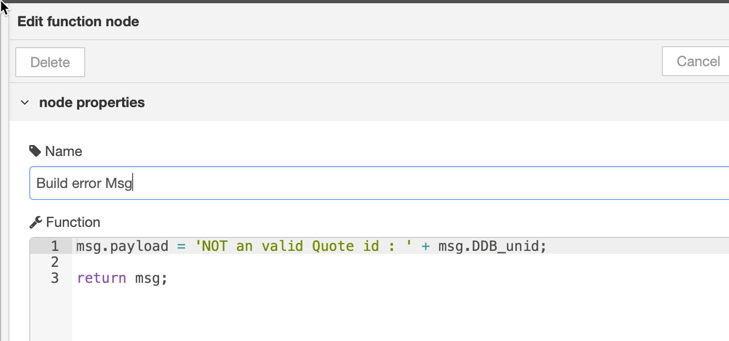

   When the catch node is triggered, we decided (in a very arbitrary and lazy way) that the reason for any unpredictable error coming from the NodeRED dominodb nodes would be that the incoming UUID was wrong. For this reason we introduced a new Build Error Msg Function node to define the payload to be returned in this case to Microsoft Teams.

   This node, then, ends into the Error Condition HTTP Response node that we previously introduced.

Conclusion

That was simple right ?
What we proved in this example was that we could really concentrate on the task of properly responding to an incoming request from Microsoft Teams; the fact that we were interacting with DOMINO has been very much simplified by the use of two cascading NodeRED dominodb nodes without worrying at all about the complexity of how it was implemented.
